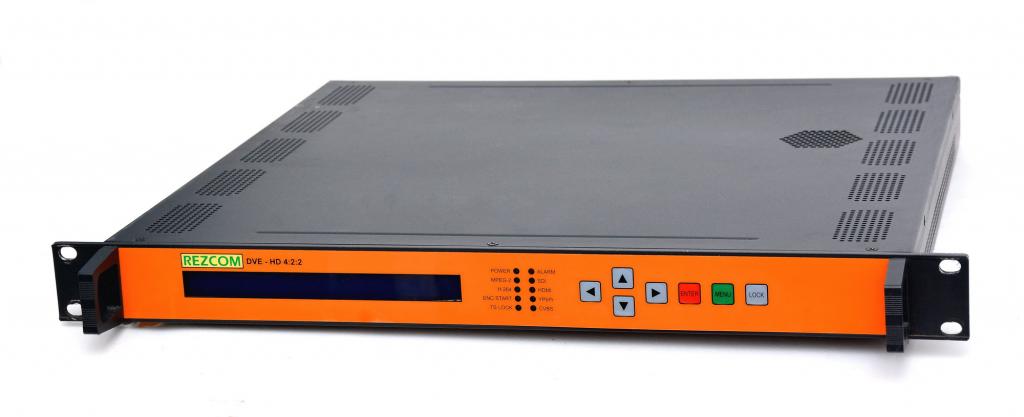

IP-ASI modulator

Main features:

Power

AC 110V±10%, 50/60Hz

AC 220V±10%, 50/60Hz

Consumption  21W
Temperature  0~45℃ (Operation), -20~80℃ (Storage)
Weight  Approx 4.0 kg
Dimension 482mm × 405mm × 44.5mm (W × D × H)



Video:

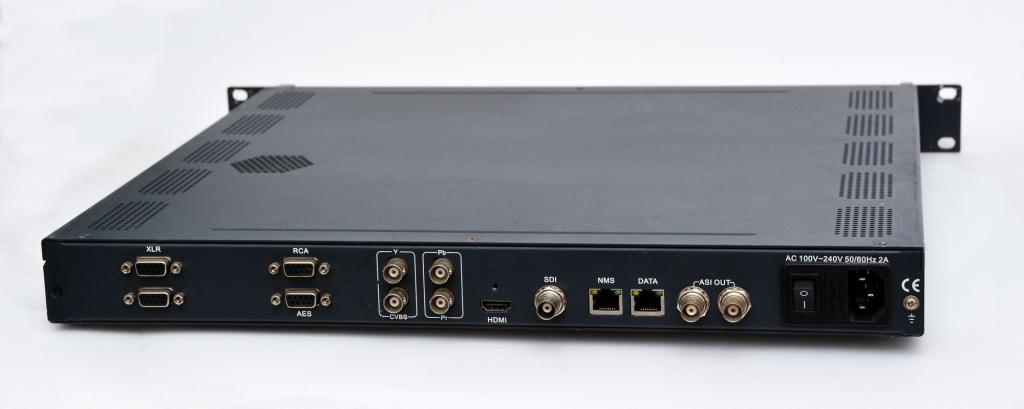

Interface 1×SDI, 1×CVBS, 1×YPbPr and 1×HDMI
Resolution

Input Output
Interface Applicable
1920×1080i@60 1920×1080, 1440×1080, 1280×1080i, 960×1080i HDMI, SDI, YPbPr
1920×1080i @59.94
1920×1080i @50
1280×720p @60 1280×720, 960×720p, 640×720p HDMI, SDI, YPbPr
1280×720p@59.94
1280×720p@50
720×576i@50 720×576, 704×576, 640×576, 544×576, 528×576, 480×576, 352×576 SDI, CVBS
720×480i@59.94 720×480, 704×480, 640×480, 544×480, 528×480, 352×480 SDI, CVBS



Encoding MPEG-2 HD/SD; MPEG-4 AVC/H.264 HD/SD
Bitrate Range 0.52 – 60.00 Mbps
Rate Control CBR
GOP Structure Auto, IP, IPB, IPBB, IPBBB
Aspect Ratio 4:3, 14:9 (for SD video), 16:9 (for HD video)
Chroma 4:2:0, 4:2:2
Advanced Pretreatment De-interlacing, noise reduction, sharpening



Audio

Interface 4×XLR, 4×RCA, 1×AES, 1×HDMI, 1×SDI (support maximum 4 stereos synchronous processing or one DD 5.1 CH processing)
Encoding MPEG-1 Layer II, HE-AAC (v1&v2), LC-AAC, DD AC3 (2.0, 5.1 available); DD AC3 passthrough (for SDI in)
Sampling rate 48KHz
Resolution 24-bit
Bit-rate 32Kbps~384Kbps



Other

Low Delay options 150ms, 200ms, 350ms, 650ms
Stream output

2×ASI output ports, BNC interface

IP over UDP and RTP, 100 Base-T Ethernet interface (UDP multicast/unicast)

System function

LCD/keyboard and web management

Language: English

Ethernet software upgrade

Rezcom reserve its right to change some of the parameters in order to improve the quality and the reliability of its equipment
